产品介绍

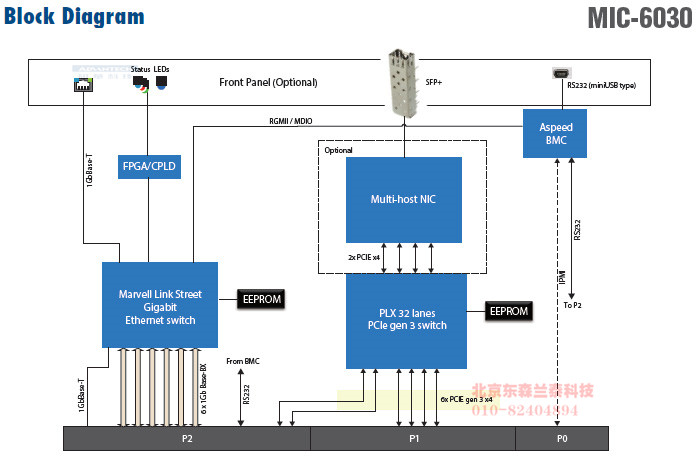

The MIC-6030 is a ruggedized single-slot 3U OpenVPX switch providing high-speed, low-latency interconnects between VPX blades connected to PCI Express and Ethernet backplane fabrics. An ExpressLane™ PEX8733 PCIe Gen3 switch connects to six PCIe Gen3 x4 ports enabling non-transparent and transparent bridging of processor blades for highly flexible multi-host and legacy configurations.

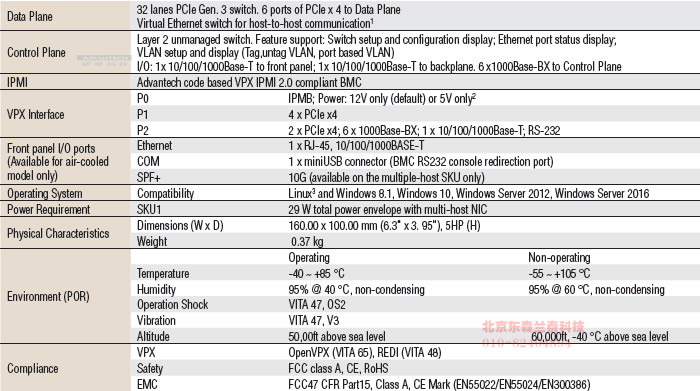

规格
订货信息
| MIC-6030-A1A1E | Air cooled MIC-6030 supporting single host |
| MIC-6030-A1A2E | Air cooled MIC-6030 supporting dual hosts |
| MIC-6030-A1C1E | Conduction cooled MIC-6030 supporting single host |
| MIC-6030-A1C2E | Conduction MIC-6030 supporting dual hosts |
| 1 Only supported on the SKU's with multiple hosts | |
| 2 Please contact the Advantech representative for the availability | |
| 3 Please refer to Mellanox website for detailed distribution and kernel information | |
| 4 Please contact the Advantech representative for the 4 hosts model availability | |
| VITA and OpenVPX Logo are trademarks of VITA | |
尺寸(单位:mm)
