产品介绍
The i-Module Series comprises optional expansion modules that are compatible with MIC-7000 Series systems.
2-slot expansion i-Module with 1 PCIe x16, 1 PCI

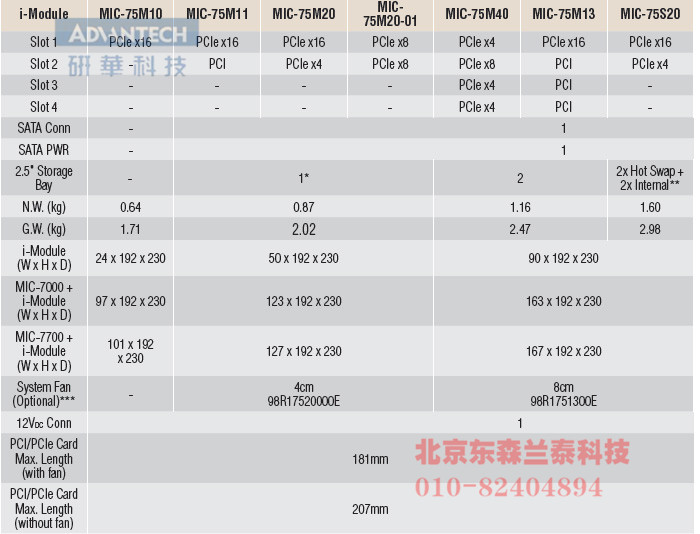

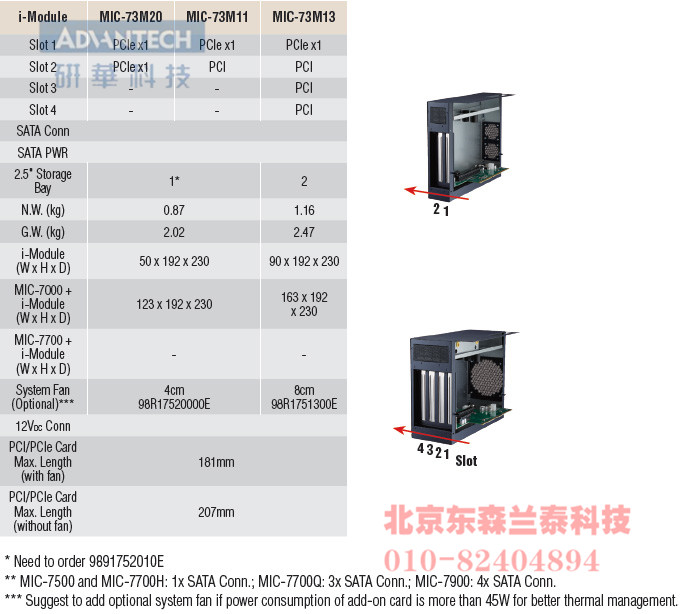

规格
订货信息
| Part Number | Description |
| MIC-75M13-00A1E | 4-slot expansion i-Module with 1 PCIe x16, 3 PCI |
| MIC-75M40-00A1E | 4-slot expansion i-Module with 1 PCIe x8, 3 PCIe x4 |
| MIC-75M11-00A1E | 2-slot expansion i-Module with 1 PCIe x16, 1 PCI |
| MIC-75M20-00A1E | 2-slot expansion i-Module with 1 PCIe x16, 1 PCIe x4 |
| MIC-75M20-01A1E | 2-slot expansion i-Module with 2 PCIe x 8 |
| MIC-75M10-00A1 | 1-slot expansion i-Module with 1 PCIex16 |
| MIC-75S20-00A1E | 2-slot expansion i-Module with 1 PCIe x16, 1 PCIe x4,2 2.5" HDD bay |
| MIC-73M13-00A1E | 4-slot expansion i-Module with 1 PCIe x1, 3 PCI |
| MIC-73M11-00A1E | 2-slot expansion i-Module with 1 PCIe x1, 1 PCI |
| MIC-73M20-00A1E | 2-slot expansion i-Module with 2 PCIe x1 |
| Optional Accessories | |
| Part Number | Description |
| 98R1751300E | 8-cm fan for 4-slot i-Modules |
| 98R1752000E | 2 x 4-cm fan for 2-slot i-Modules |
| 98R1752010E | Secondary HDD bracket (for 2-slot i-Modules) |

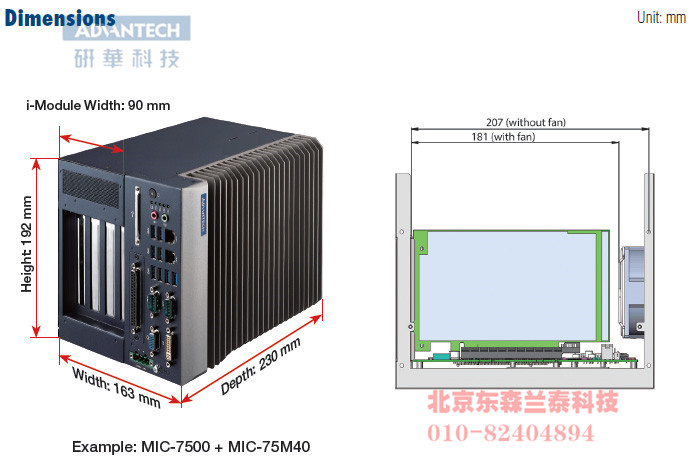

尺寸(单位:mm)
