产品介绍
Intel® Celeron® Quad Core J1900 SoC Modular Fanless Box PC

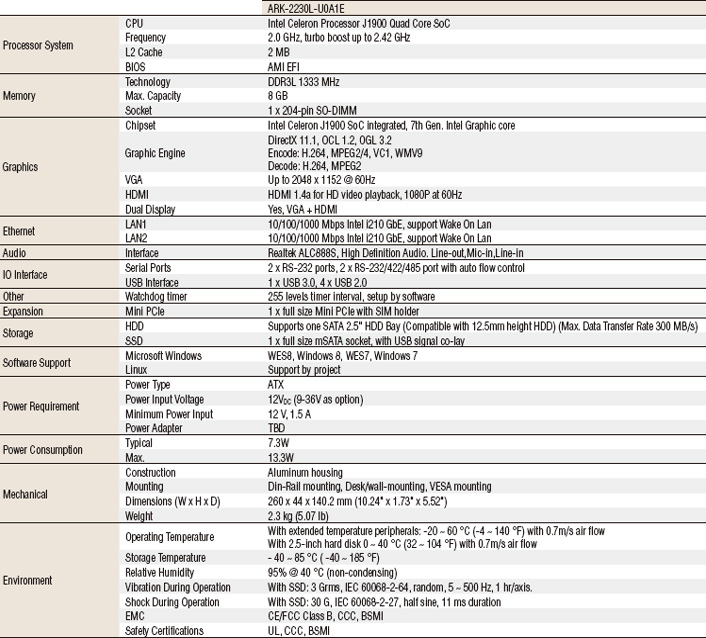

规格
订货信息
| P/N | Description |
| ARK-2230L-U0A1E | Intel Celeron J1900 2.0GHz |
| Packing List | |
| - | ARK-2230L主机 |
| - | 1 x User Manual (Simplified Chinese) |
| - | China RoHS |
| Embedded O/S | |
| 2070013990 | WES7E 64bit ENG/T-CH/S-CH/JP |
| TBD | WES8E 64bit ENG/T-CH/S-CH/JP |
| Note: Default BIOS is for 64bit OS support only. 32bit OS will need to update BIOS | |
| Optional Item for Default SKU | |
| 96PSA-A60W12W6 | AC-to-DC Adapter, DC12V/5A 60W |
| 1702002600 | Power cable 3-pin 183cm, USA type |
| 1702002605 | Power cable 3-pin 183cm, EU type |
| 1702031801 | Power cable 3-pin 183cm, UK type |
| ARK-2230 Single Layer Expansion Option Items | |
| Optional MOS modules for iDoor Expansion | |
| MOS-2230-Z1201E | CANBus module, 2-Ch, USB Interface |
| MOS-2220-X1101E | Parallel LPT module, 1-Ch, USB Interface |
| MOS-2110Z-1201E | USB module, 2-Ch, PCIe Interface |
| MOS-2120-Z1101E | Giga LAN Ethernet module, 1-Ch, PCIe Interface |
| MOS-1120Y-0201E | Isolated RS-232, 2-Ch, DB9, PCIe Interface |
| MOS-1121Y-0201E | Isolated RS-422/485, 2-Ch, DB9, PCIe Interface |
| MOS-1120Y-1401E | Non-Isolated RS-232, DB37, 4-Ch, PCIe Interface |
| MOS-1121Y-1401E | Non-Isolated RS-422/485, DB37, 4-Ch, PCIe Interface |
| MOS-1130Y-0201E | Isolated CANBus, 2-Ch, DB9, PCIe Interface |
| MOS-1110Y-0101E | Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe Interface |
| *Please noted ARK-2230L can support only 1 iDoor for single layer. | |
| Optional 9-36V DC Power module | |
| MIOE-PWR2-00A1E | 9-36V DC input power module |
| 96PSA-A65W19P2-1 | AC-to-DC Adapter, DC19V/3.42A 65W (for MIOe-PWR2) |
| 96PSA-A65W19P2-2 | AC-to-DC Adapter, DC19V/3.42A 65W (for MIOe-PWR2) |
| 1700001524 | Power cable 3-pin 183cm, USA type (for MIOe-PWR2) |
| 170203183C | Power cable 3-pin 183cm, EU type (for MIOe-PWR2) |
| 170203180A | Power cable 3-pin 183cm, UK type (for MIOe-PWR2) |
| ARK-2230 Dual Layer Expansion Option Items | |
| Optional modules for ARK Plus Expansion | |
| AMO-2201E (2nd Layer) | 4 x RS232/422/485 + removable 2.5" drive |
| AMO-2203E (2nd Layer) | 2-Port isolated CAN-Bus |
| AMO-2204E (2nd Layer) | 3-port GbE + iDoor (2nd iDoor support USB I/F only) |
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

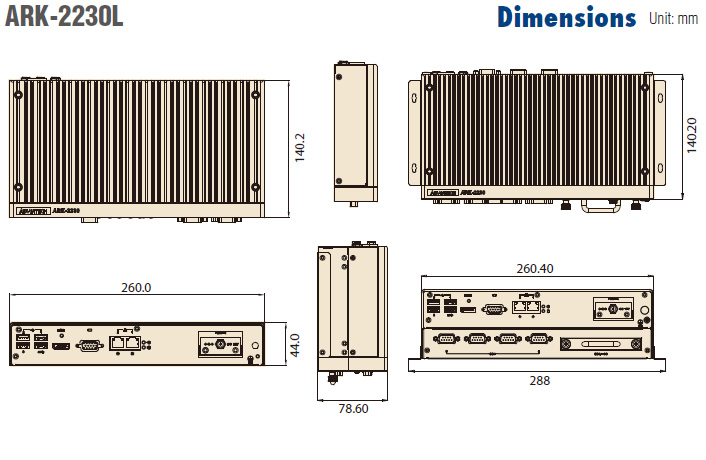

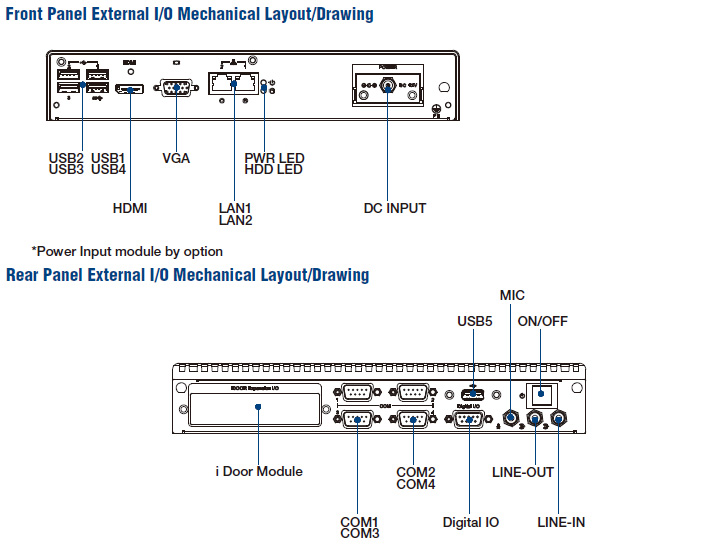

产品图片及框图
