主要特点
Supports 4K/Ultra HD resolution and HEVC video decoding
Integrated with Dual channel DDR4 2133 SO-DIMM
Flexibility for expansion (Mini PCIe and M.2 2230/1630 E Key) and storage devices (2.5" SATA III HDD/SSD,m-SATA)
Supports 3 x HDMI, 4 x USB 3.0, 2 x RJ45, 1 x RS-232, 1 x SPDIF-out/Line-out/Mic-in
Content management software built-in for content editing, scheduling and remote monitoring functions
|
|
产品介绍
Advantech DS-780 is high performance computing, low power for advanced Digital Signage Player.It powered by 6th generation Intel® Core™ U series processor and designed with fanless solution. DS-780 supports 4K resolution by HDMI outputs. The storage of DS-780 can be easily maintain via its slide-in chassis design.As a high performance and fanless solution, DS-780 is ideal for single single to triple display applications in stores, lobbies, restaurants, FIDS, hotels and other display public space.

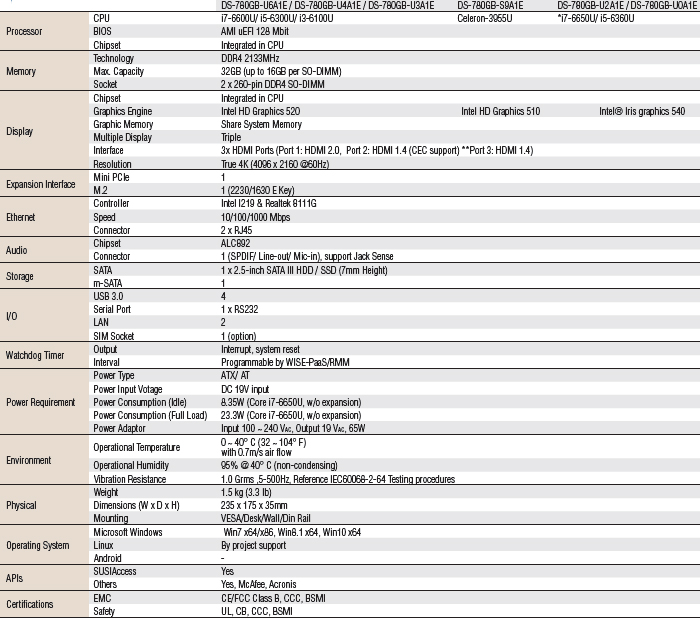

规格
订货信息
|
Part Number |
Description |
|
DS-780GB-U6A1E |
DS-780,Intel Skylake-U i7-6600U, Barebone |
|
DS-780GB-U4A1E |
DS-780,Intel Skylake-U i5-6300U, Barebone |
|
DS-780GB-U3A1E |
DS-780,Intel Skylake-U i3-6100U, Barebone |
|
DS-780GB-S9A1E |
DS-780,Intel Skylake-U CLN-3955U, Barebone |
|
DS-780GB-U2A1E |
DS-780,Intel Skylake-U i7-6650U, Barebone |
|
DS-780GB-U0A1E |
DS-780,Intel Skylake-U i5-6360U, Barebone |
|
Packing List |
|
|
Part Number |
Description |
|
- |
1 x DS-780 Unit |
|
|
1 x Power Adapter |
|
- |
1 x Bracket set for fixing power adapter plug |
|
|
2 x Mounting Brackets |
|
- |
1 x User Manual |
|
|
1 x Content Management Software |
|
- |
4 x Foot rubers and screws |
|
Embedded OS Image |
|
Part Number |
Description |
|
2070014495 |
Img WES7E DS-780 x64 V5.7.0 EN/JP/SC/TC |
|
2070014788 |
img WES7P DS-780 64bit 1609 Eng |
|
2070014686 |
Img WE8.1 IndPro DS-780 x64 V1.0 |
|
2070014558 |
img Win10Ent DS-780 x64 V10.0.10240.0 10MUI |
|
Power Cord |
|
|
Part Number |
Description |
|
1700001524 |
3-pin power cord (US) |
|
170203183C |
3-pin power cord (EU) |
|
170203180A |
3-pin power cord (UK) |
|
1702031836 |
3-pin power cord (AU) |
|
1700008921 |
3-pin power cord (Japan) |
|
1700019146 |
3-pin power cord (China) |
|
Mounting Kits |
|
|
Part Number |
Description |
|
AMK-V005E |
VESA mount kit (Generic for ARK-DS/DS) |
|
AMK-V017E |
DS products VESA with Din Rail bracket |
|
Optional Items |
|
|
Part Number |
Description |
|
AMO-WIFI06E |
Realtek/wifi 802.11bgn/miniPCIe, cable, antenna |
|
AMQ-HSDPA02E |
U-blox/HSDPA 6band/miniPCIe, cable, antenna |

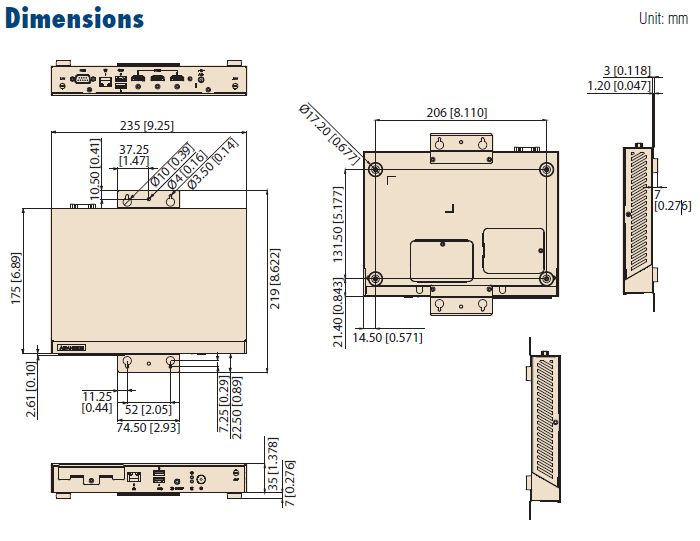

尺寸(单位:mm)

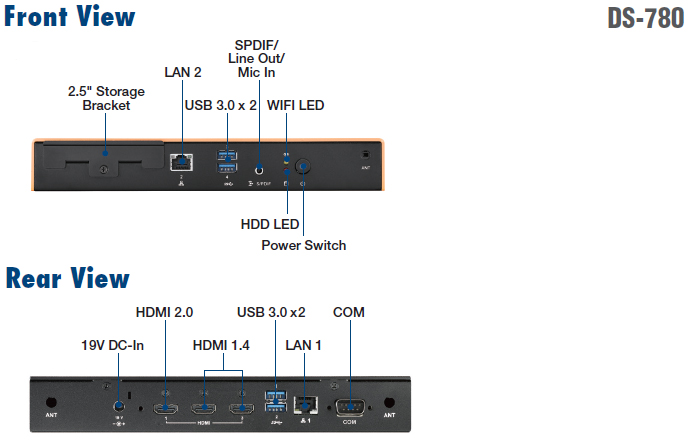

I/O Appearance
|
