产品介绍
1U超薄嵌入式工控机，搭载Intel ATOM第六代 Apollo Lake处理器，1U超薄可扩展嵌入式工控机.研华EPC-T3217嵌入式工控机搭载Intel ATOM第六代 Apollo Lake处理器，1U高度，可上架，可扩展，独特的散热设计，最大支持65W CPU，性能强劲，体积小巧，性价比高，是自助设备，机器视觉，AI图像处理等高性能应用的理想选择。

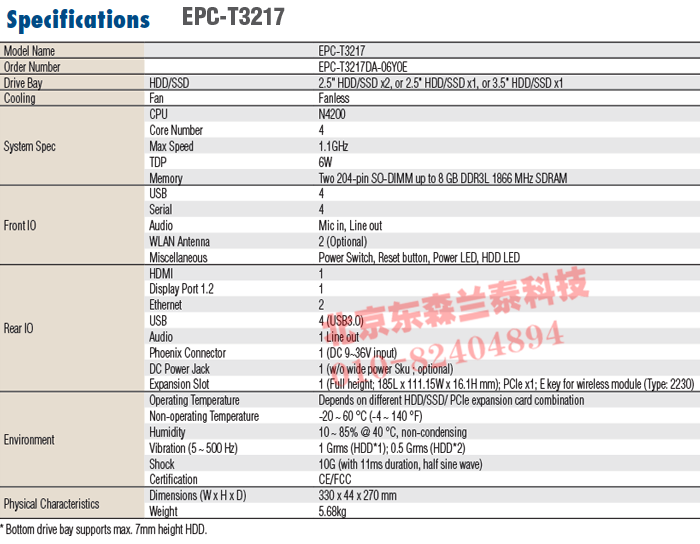

规格
订货信息
| Model Name | Part Number | CPU | Memory/HDD | 9~36V in | Adaptor | Certification |
| EPC-T3217 | EPC-T3217DW-06Y0E | N4200 | X | V | X | CE/FCC |
| Power Adapter | |||||
| Part Number | Connector | Watts | Input | Output | Safety |
| 96PSA-A120W12P4 | 4P Terminal block | 120W | AC 100 ~ 240 V | 12 V, 10A |
1 CE/FCC/CCC/UL/CB /KC/PSE/GS/GOST R |
| 96PSA-A84W12P4 | 4P Terminal block | 84W | AC 100~240V | 12 V, 7A |
CE/FCC/CCC/UL/CB/ KC/PSE/GS/PSE/BIS |
| 96PSA-A60W12V1-1 | 2.5 | 60W | AC 100~240V | 12 V, 5A |
1 CE/FCC/CCC/UL/ CB/KC/PSE/GS/PSE/BIS |
| 96PSA-A84W12V1 | 2.5 | 84W | AC 100~240V | 12 V, 7A |
CE/FCC/CCC/UL/CB/ KC/PSE/GS/PSE/BIS |
| Packing List | ||
| Part Number | Description | Quantity |
| 1930001241 | Screws for Hard Disk/ spare | 6 |
| 1930003238 | M3x5 screws for rubber foot/wall mount bracket | 4 |
| 1930004828 | Spare screws for hard disk bracket | 2 |
| 1990012452S000 | Rubber foot | 4 |
| 1990021263S000 1990021264S000 | Lock harness for power cord | 1 |
| 2190000902 | CARDBOARD-WARRANTY REV. A2 | 1 |
| Optional Accessories | ||
| Part Number | Description | |
| EPC-BRKT-RM000 | EPC-T3000 series rack mounting bracket kits | |
| AIMB-0BRK-WM02E | AIMB-T,EPC-T/B series wall mounting bracket kits | |
| EPC-BRKT-VM000 | EPC-T3000 series VESA Mounting bracket kits | |
| 1700023768-01 | 1x4P Phoenix to DC Jack 15cm cable | |
| 1700000596 | [power cable 3-pin 183cm, China type | |
| 1702031801 | Power cable 3-pin 183cm, UK type | |
| 1702002600 | Power cable 3-pin 183cm, USA type | |
| 1702002605 | Power cable 3-pin 183cm, Europe type | |
| Drive Bay and Expansion Card Combination | ||
| Model | CPU TDP | Storage | PCIe Expansion | Operating Temp. | Max. PCIe Card Dimensions |
| 6W | 1 x 2.5" HDD | V | 0 ~ 40 °C** | 185L x 111.15W x 16.1H (mm) | |
| 6W | 1 x 2.5" SSD | V | 0 ~ 40 °C** | 185L x 111.15W x 16.1H (mm) | |
| EPC-T3217 | 6W | 1 x mSATA | V | 0 ~ 40 °C** | 185L x 111.15W x 16.1H (mm) |
| 6W | 2 x 2.5" HDD | X | 0 ~ 40 °C | none | |
| 6W | 2 x 2.5" SSD | X | 0 ~ 45 °C | none | |
| 6W | 1 x 3.5" HDD | X | 0 ~ 40 °C | none |

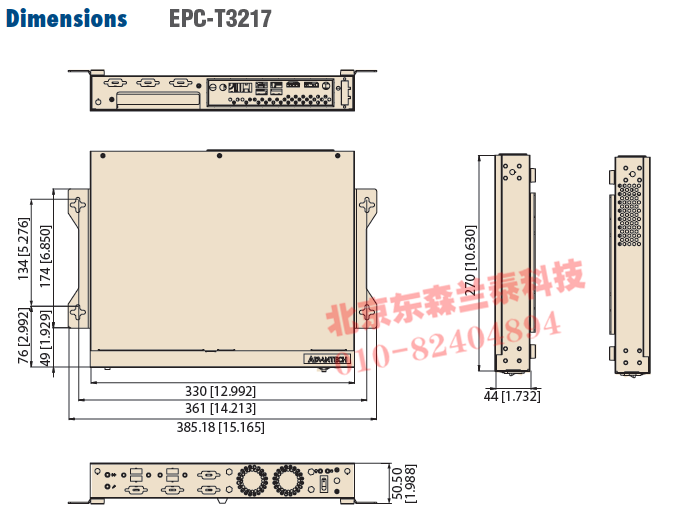

尺寸(单位:mm)
