产品介绍
Intel® 6th/7th Generation Desktop Core™ i3/i5/i7 1U THIN embedded PC

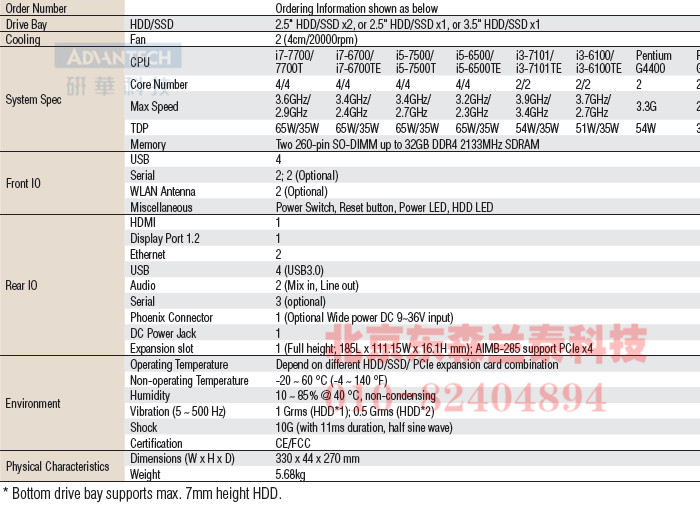

规格
订货信息
| Ordering Information | ||
| Model Name | Part Number | CPU |
| EPC-T3285 | EPC-T3285CA-00Y1E | Celeron G3900 |
| EPC-T3285 | EPC-T32855A-00Y0E | i5-7500 |
| EPC-T3285 | EPC-T32855A-15Y1E | i5-7500 |
| Power Adapter | ||
| Part Number | Watts | Input |
| 96PSA-A120W12P4 | 120W | AC 100 ~ 240 V |
| Optional Accessories | ||
| Part Number | Description | |
| AIMB-0BRK-RM03E | EPC-T3000 series Rack Mounting bracket kits | |
| AIMB-0BRK-WM02E | AIMB-T,EPC-T/B series Wall Mounting bracket kits | |
| AIMB-0BRK-VM06E | EPC-T3000 series VESA Mounting bracket kits | |
| 1700023768-01 | 1x4P Phoenix to DC Jack 15cm cable | |
| 1700000596 | Power cable 3-pin 183cm, China type | |
| 1702031801 | Power cable 3-pin 183cm, UK type | |
| 1702002600 | Power cable 3-pin 183cm, USA type | |
| 1702002605 | Power cable 3-pin 183cm, Europe type | |

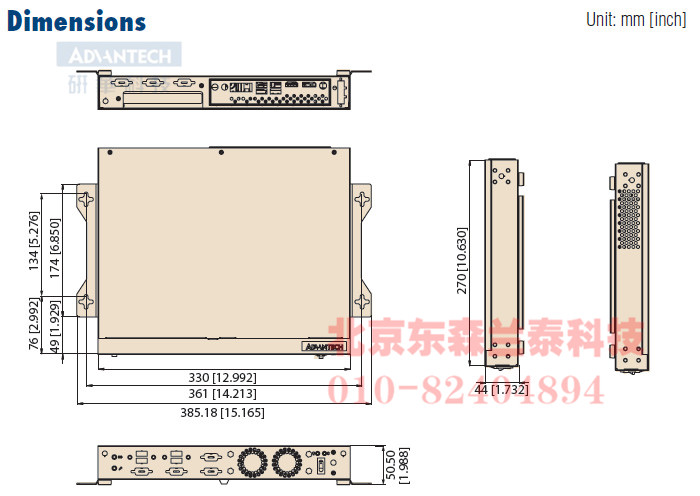

尺寸(单位:mm)

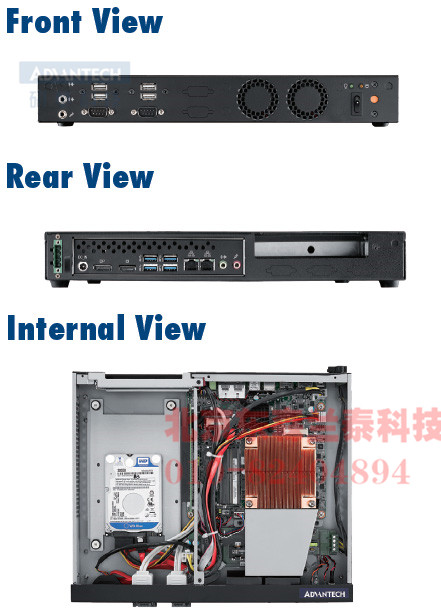

I/O Appearance
