主要特点

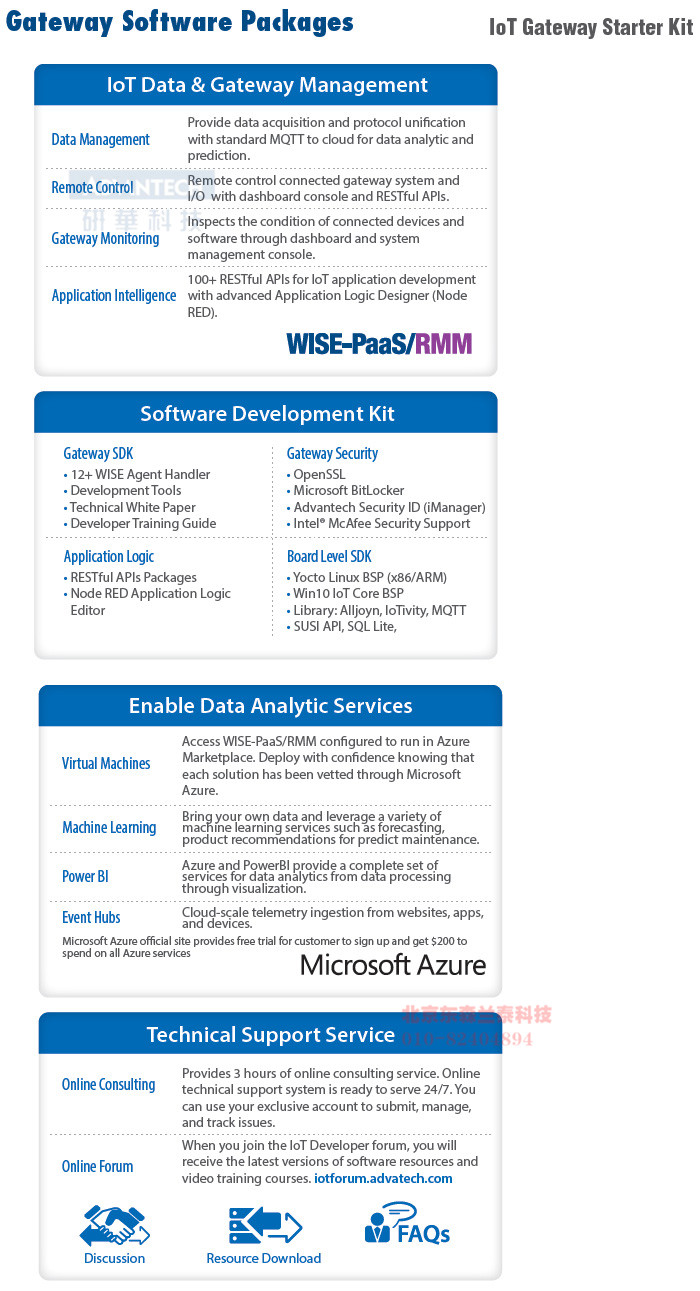

Microsoft Azure certified and WISE-PaaS/RMM ready on Microsoft Azure Marketplace to enable big data analytics services
Pre-configurd system: Intel Celeron J1900 SoC, WES7E(WINDOWS Embedded OS) , 4GB Memory and 500 GB HDD
WISE-PaaS/RMM (remote monitoring and management) Pro version: IoT software for data management, device monitoring/control and security (Intel® Security)
Comprehensive developer tools and documents: gateway & security SDK, 100+ RESTful APIs, Node-RED Logic Editor
Provides 3 hours of online consulting services with your exclusive account to submit, manage, and track service status
IoT News, Software Design Tools, and Software Upgrade
|
|
产品介绍
Advantech IoT Gateway Starter Kit created in collaboration with Intel® and Microsoft®. This kit will jumpstart your IoT innovation with a reliable platform and open gateway technologies. The whole package includes a ready-to-run system (Intel® Celeron® J1900 platform & Windows 7 Embedded), IoT software platform service (WISE-PaaS), development kit and technical support service, and Azure service certification and integration. With it, you can take your IoT innovation to market faster and create new business value.

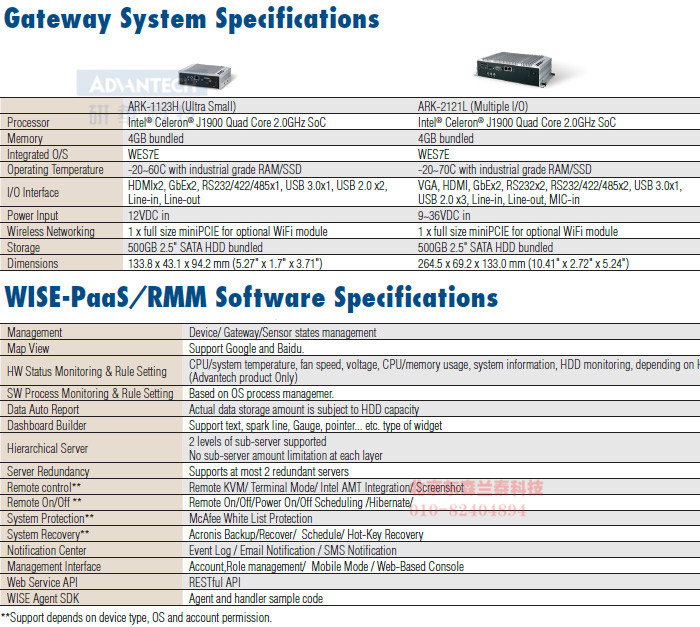

规格
订货信息
|
Ordering Information |
|
P/N |
CPU |
|
IG-ARK1123-H431A |
Intel Celeron J1900 SoC |
|
IG-ARK2121-L431A |
Intel Celeron J1900 SoC |
|
* If select industrial grade memory and SSD. |
|
Packing List |
|
|
Part Number |
Description |
|
ARK-1123H |
IoT Gateway with WES7E, 4GB DDR3 Memory, 500GB HDD |
|
ARK-2121L |
IoT Gateway with WES7E, 4GB DDR3 Memory, 500GB HDD |
|
1757004096-01 |
100-240V 36W 12V ADAPTER for ARK-1123H |
|
96PSA-A65W19P2-2 |
100-240V 65W 19V ADAPTER for ARK-2121L |
|
32EMRMP31A |
WISE-PaaS/RMM pro version /1 agent built in |
|
32EMRMP313 |
3hrs consulting service |
|
- |
IoT Developer Forum VIP Access |
|
Optional Items |
|
|
Part Number |
Description |
|
1700001524 |
Power Cable 3-pin 180cm, USA type(For power adapter 96PSA-A36W12W6-1) |
|
170203183C |
Power Cable 3-pin 180cm, Europe type(For power adapter 96PSA-A36W12W6-1) |
|
170203180A |
Power Cable 3-pin 180cm, UK type(For power adapter 96PSA-A36W12W6-1) |
|
1700008921 |
Power Cable 3-pin PSE Mark 183cm(For power adapter 96PSA-A36W12W6-1) |
|
AMK-V003E |
VESA mounting kit for ARK-1123 |
|
AMK-V004E |
VESA mounting kit for ARK-2121 |
|
AMK-R001E |
DIN-rail mounting kit for ARK-1123 |
|
AMK-R004E |
DIN-rail mounting kit for ARK-2121 |
|
AMK-W001E |
Wall mounting kit for ARK-1123 |
|
EKI-1221-BE |
1-port Modbus Gateway |
|
EKI-1222-BE |
2-port Modbus Gateway |
|
EKI-1224-BE |
4-port Modbus Gateway |
|
EKI-1361-AE |
1-port RS-232/422/485 to 802.11b/g/n WLAN Serial Device Server |
|
EKI-1362-AE |
2-port RS-232/422/485 to 802.11b/g/n WLAN Serial Device Server |
|
EKI-1521-BE |
1-port RS-232/422/485 Serial Device Server |
|
EKI-1522-BE |
2-port RS-232/422/485 Serial Device Server |
|
EKI-1524-BE |
4-port RS-232/422/485 Serial Device Server |
尺寸(单位:mm)
|
