主要特点
All-in-One RISC-based Intelligent and Industrial platform with Freescale i.MX6 Dual Cortex-A9 1.0 GHz processor
Linux 3.10.17 BSP embedded
Compliant to 6LoWPAN and IEEE 802.15.4e standards
Supports up to 100/ 200 Wireless nodes
Power saving mode and fanless design

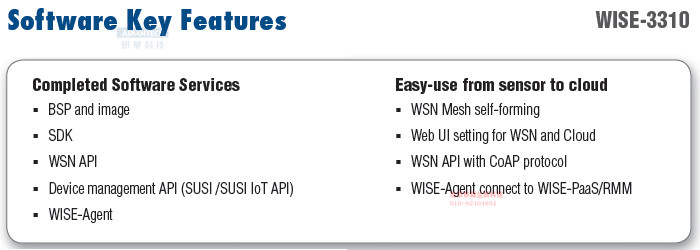

Integrated with WISE-PaaS/RMM for IoT Software Platform
|
|
产品介绍
Advantech RISC-based WPAN Network Controller, WISE-3310, is powered by the Freescale i.MX6 Dual Cortex-A9 1.0 GHz processor, Linux 3.10.17 BSP and Linear Dust LTC5800 Cortex M3 MCU with Smartmesh core technology for IEEE 802.15.4e standards. With changeable embedded modules and feature-rich protocol, WISE-3310 creates a cost-effective open platform for easy integration and development in different M2M/IoT applications. Also, it is integrated with WISE-PaaS/RMM for IoT Software platform to complete and streamline the IoT solution, from sensor to cloud.

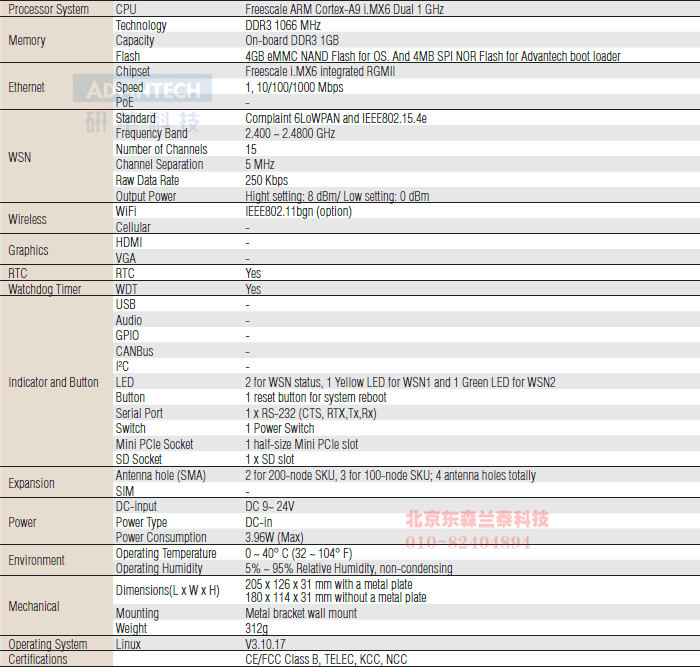

规格
订货信息
|
Ordering Information |
|
P/N |
Description |
|
WISE-3310-D200L1E |
WISE-3310 WPAN GW, 200-Node, Linux OS |
|
WISE-3310-D100L1E |
WISE-3310 WPAN GW, 100-Node, Linux OS |
|
Related Models |
|
|
Model Name |
Description |
|
WISE-1020-0C01E |
Wireless IoT Node with on-board Chip-antenna |
|
WISE-1020-0S01E |
Wireless IoT Node with external SMA Antenna |
|
WISE-1021WR-1100E |
Wireless IoT Node with TI MSP430 MCU |
|
Packing List |
|
|
Part No. Description |
|
96PSA-A36W12R1 |
ADP A/D 100-240V 36W 12V |
|
1750007622-01 |
Antenna 2.4Ghz 3.5dBi SMA Male Reverse |

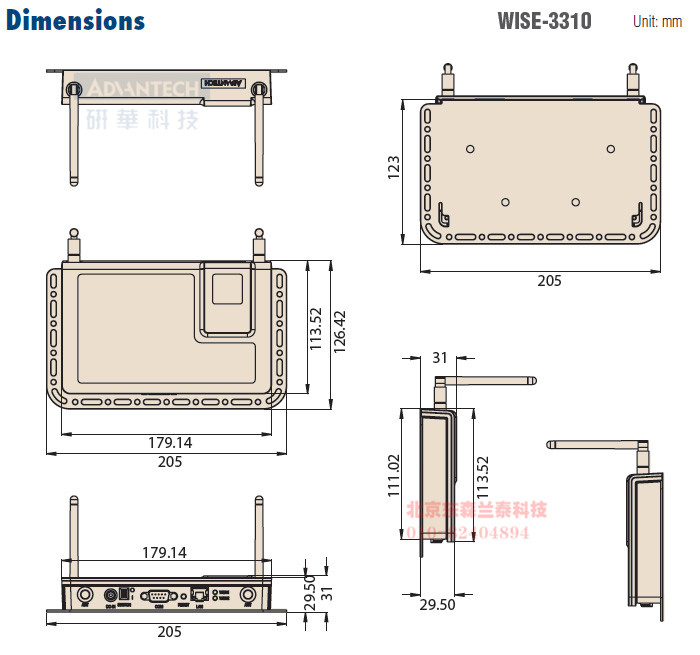

尺寸(单位:mm)
I/O Appearance
|
