产品介绍
单路LGA 3647-P0 Intel® Xeon® Scalable ATX 服务器主板，带 6 个DDR4, 5 个PCIe x8 或者 2 个PCIe x16 和 1个 PCIe x8, 8 个SATA3, 6 个USB3.0, Dual 10GbE, IPMI

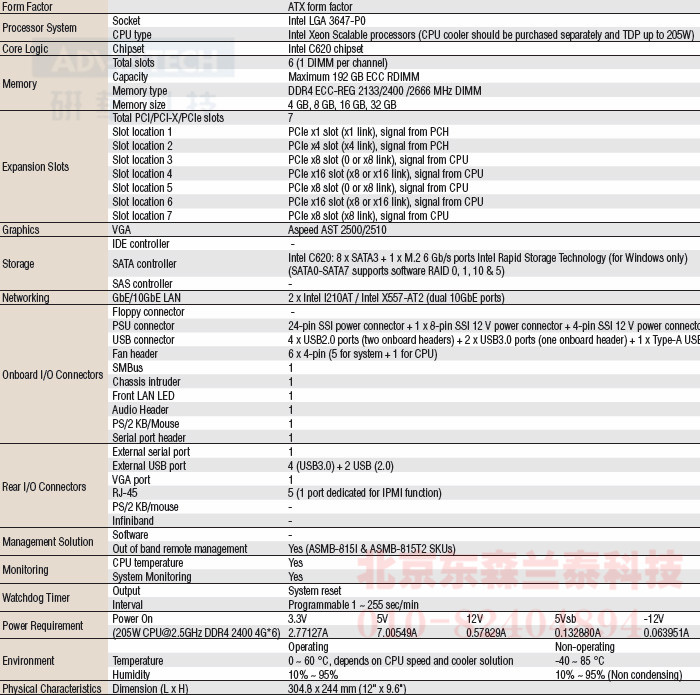

规格
订货信息
| ASMB-815-00A1E | Chipset C621,DDR4 RDIMM |
| ASMB-815I-00A1E | Chipset C621,DDR4 RDIMM |
| ASMB-815T2-00A1E | Chipset C622,DDR4 RDIMM |
| Optional Accessories | |
| Part Number | Description |
| PCA-AUDIO-HDB1E | HD Audio-card |
| PCA-TPM-00B1E | TPM 2.0 Module by LPC |
| 1960081603N001 | LGA-3647 narrow CPU cooler for 2U/4U chassis |
| 1960081155N001 | LGA-3647 narrow CPU cooler for 1U chassis |
| 1700002204 | Dual port USB cable (27 cm) with bracket |
| 1700008461 | Four port USB cable (30.5 cm) with bracket |
| 1700020277-01 | Dual port USB 3.0 cable (30 cm) with bracket |
| 1701090401 | COM port cable (40 cm) with bracket |
| 1700019268-11 | PS/2 port cable (35 cm) |
| 1960063434N000 | Cable bracket for 1700019268-11 |
| 1960082347T000 | For 1U chassis IO shield |
尺寸(单位:mm)
I/O Appearance
