产品介绍
研华IDK-1107W系列配备了一个7寸工业级液晶显示屏，4线电阻式触摸，该系列产品还可以提供增强的LCD屏幕灵活的选择处理如抗反射表面处理和光学粘合溶液。 IDK-1107W系列支持低功耗的4线电阻式触摸时的最大3.35 W＆3.57W. IDK-1107W系列非常适合嵌入式应用，让用户最大的灵活性机械设计。
规格
| Display Size | 7" LED backlight panel (WVGA) | 7" LED backlight panel (WSVGA) | |
| Resolution | 800 x 480 | 1024x600 | |
| Viewing Angle (U/D/L/R) | 80° / 80° / 80° / 80° | 70° / 75° / 75° / 75° | |
| Brightness | 400 cd/m2 | 500 cd/m2 | |
| Backlight Life (hrs) | 50,000 hrs | 50,000 hrs | |
| Contrast Ratio | 1000 : 1 | 700:1 | |
| LCD Panel | Response Time (ms) | 30 ms | 25 ms |
| Colors | 6 Bit (262K)/8 bit (16.2 M) | 6 Bit (262K)/8 bit (16.2 M) | |
| Voltage | 3.3 V Power | 3.3 V Power | |
| Consumption | 3.35 W | 3.57 W | |
| Signal Interface | 1 channel LVDS | 1 channel LVDS | |
| Weight | 305 g | 190 g | |
| Dimensions (W x H x D) | 170 x 111 x 7.5 mm | 165.5 x 104.44 x 8.97 mm | |
| Touch Screen | 4-wire Resistive | 4-wire Resistive | |
| Transparency | 82.5± 2.5% | 82.5± 2.5% | |
| Touch Screen | Surface Hardness | 3H | 3H |
| Durability | 1 million times | 1 million times | |
| Operating Temperature | -5 ~ 60° C | -20 ~ 70° C | |
| Environment | Storage Temperature | -30 ~ 70° C | -30 ~ 80° C |
| Humidity |
10 ~ 90% @ Max. 38° C, non-condensing |
10 ~ 90% @ Max. 25° C, non-condensing |
订货信息
| Part No. | Size | Brightness (cd/m2) |
| IDK-1107WR-40WVA1E | 7" | 400 |
| IDK-1107WR-50WSA1E | 7" | 500 |
| Optional Order | ||
| For IDK-1107WR-40WVA1E | ||
| SBC Part No. | LVDS Cable P/N | |
| MIO-5250 | 96CB-L2040PAB4 | |
| PCM-9363 | 96CB-L2020PAB2 | |
| AIMB-270 | 96CB-L2040PAB4 | |
| For IDK-1107WR-50WSA1E | ||
| SBC Part No. | LVDS Cable P/N | |
| MIO-5250 | 96CB-L2040PID4 | |
| PCM-9363 | 96CB-L2020PID2 | |
| AIMB-270 | 96CB-L2040PID4 | |
| Packing List | ||
| Part Number | Description | |
| ETM-RES05C-EEH4EE | 1 x 4-wire USB Touch controller | |
| 1700020324-01 | 1x USB Touch cable 5P-2.0/USB-A (M) 180CM | |
| Note: Package contents are subject to change without prior notice | ||

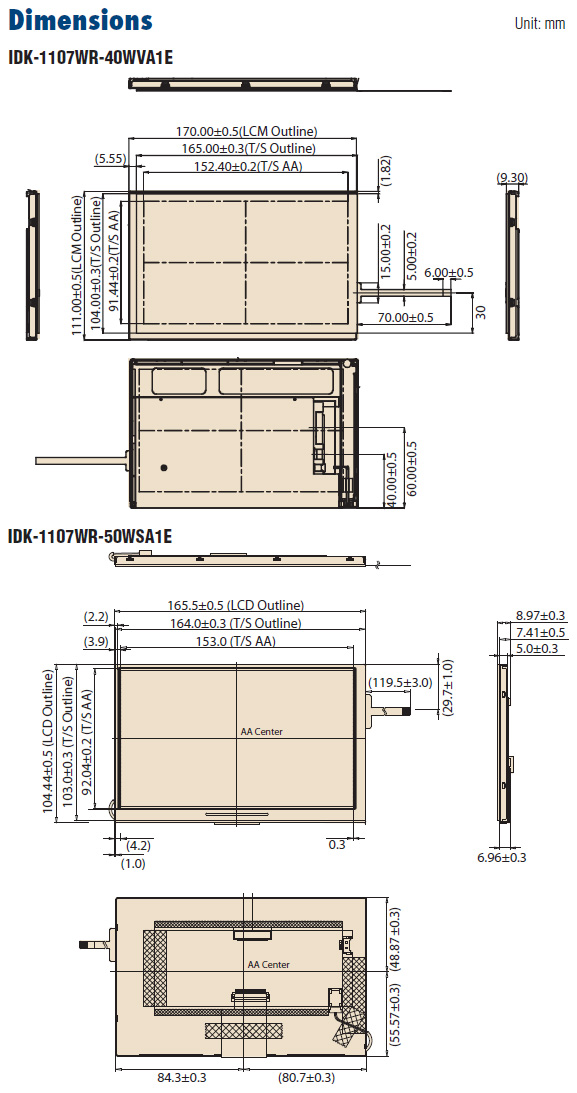

尺寸
