产品介绍
The PPC-3190 is a 19" fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp. (-20~60°C)and wide range of power input (9~32VDC). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary card makes more application possibility.
规格
| CPU | Intel ATOM E3845 | |
| Frequency | 1.91 GHz | |
| L3 Cache | 2M | |
| Chipset | Intel Bay-Trial I | |
| Memory | 1 x 204-pin SODIMM DDR3L support up to 8GB | |
| Storage 1 | 1 x 2.5” SATA bay | |
|
Optional Storage & I/O |
Either: 1 x Full size mSATA CFast card (optional module) CF card (optional module) Internal USB connector for USB dongle (optional module) 2 x DB9 for two RS-232 or one RS-232 and one GPIO (optional module) |
|
| Processor system | Network (LAN) | 2 x Gigabit Ethernet, (Intel I210) |
| I/O Ports |
1 x isolated RS-422/485 (terminal block) 4 x RS-232, two external and two by internal pin header (need optional module) 1 x GPIO (8 channels, TTL level) by internal pin header (need optional module) 1 x USB3.0 + 3 x USB2.0 2 x Gigabit Ethernet 1 x D-SUB VGA port 1 x DP1.1a 1 x Line-out, 1 x Mic-in, 2 x 1W speaker, |
|
| Expansion slots |
Either: One PCI (standard) One PCIe x 1 (in the accessory box) |
|
| Other Expansion | 1 x Full-size Mini PCIe | |
| Physical | Dimensions | 458.2 x 384 x 67.3(mm)(18" x 15" x 2.6") |
| Characteristics | Weight | 7.9kg (17.3Ib) |
| OS support | OS Support | WES7 32&64bit / Windows 7 32&64bit/ Windows 8 32&64bit |
| Power supply | Input Voltage | 9-32 Vdc |
| Power Consumption | 27W (Burn-In test 7.0 in windows 7 32bits) | |
| Display Type | 19" TFT LCD (LED Backlight) | |
| Max. Resolution | 1280x1024 | |
| Colors | 16.7M | |
| LCD Display | Viewing Angle | 85 (left), 85 (right), 80 (up), 80 (down) |
| Luminance(cd/m2) | 350 | |
| Conrast Ratio | 1000 | |
| Backlight Lifetime | 50,000 hrs (typ.) | |
| Touch Type | Analog Resistive 5-wire | |
| Light Transmission | 81% ± 3 % | |
| Touchscreen | Controller | USB interface |
| Software Driver Supports | Windows 7 / Windows 8 | |
| Durability (Touches) | 36 million | |
| Operating Temperature |
0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD -20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA or 2.5" SATA SSD |
|
| Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) | |
| Relative Humidity | 10 ~ 95% @ 40°C (non-condensing) | |
| Environment | Shock | Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 |
| Vibration | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 | |
| EMC | BSMI, CE, FCC Class A | |
| Safety | CB, CCC, BSMI, UL | |
| Front Panel Protection | IP65 compliant |
订货信息
| PPC-3190-RE4AE | Intel Atom E3845(1.91G),19" SXGA LED&T/S,W/O RAM |
| PPC-WLAN-A2E | WiFi Module with Antenna Cable 40cm for PPC |
| PPC-174T-WL-MTE | Wall mount kit for PPC series |
| PPC-ARM-A03 | PPC ARM VESA Standard |
| PPC-3190-C〇ME | Module to install either two additional RS-232 port or one additional RS-232 and one GPIO for PPC-3190 |
| PPC-3150-USBE | Module to install internal USB dongle for PPC-3150/ PPC-3170 |
| PS-DC19-L157E | 19V DC power adapter module for fanless PPC series |
| 1700001524 | Power cord 3P UL10A125V 1.8M |
| 170203183C | Power cord 3P Europe (WS-010+083) 183cm |
| 1700008921 | Power cord 3P/3P 1.8M PSE |
| 2070013015 | Imaqe WES7P 32-bit Multi V4.12 for PPC-3150/3170 |
| 2070013321 | Image WES7P 64-bit Multi V4.12 for PPC-3150/3170 |
| PPC-STAND-A1E | Stand For PPC Series (single acting hinge) |
| PPC-174 Stand | Stand for PPC Series (double acting hinges) |

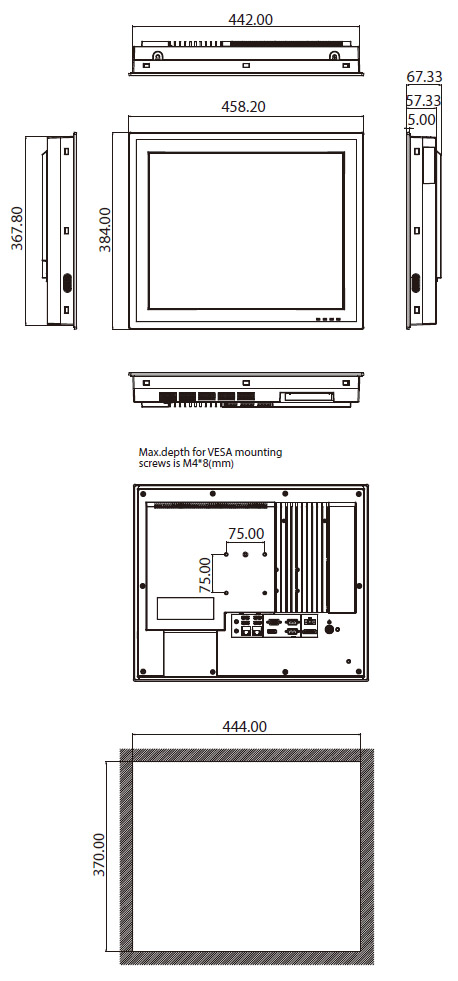

尺寸(单位:mm)

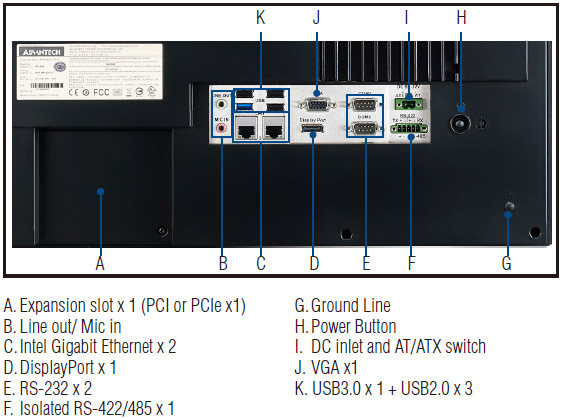

I/O Appearance
