| 产品介绍 |
|

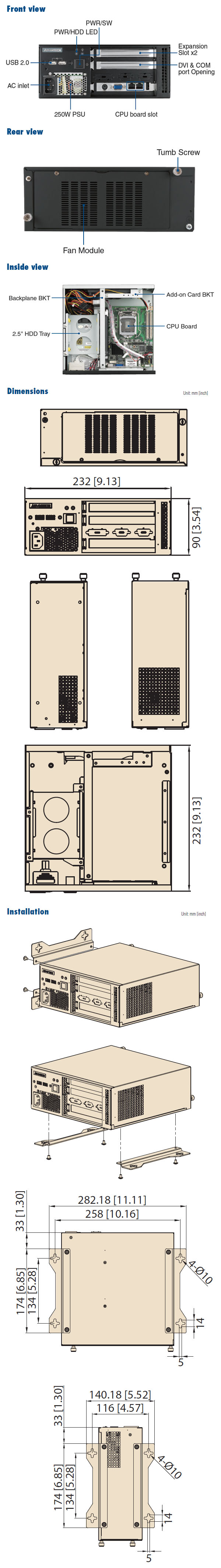

紧凑型嵌入式机箱PICMG1.3半尺寸SHB |
|
磁盘驱动器托架 |
|
前访问 |
内部 |
|
|
2.5" |
- |
2 |
||
|
冷却 |
Fan |
2 (6 cm/27 CFM) |
|
|
|
空气过滤器 |
Yes |
|||
|
前置I / O接口 |
USB |
2 |
|
|
|
Miscellaneous |
LED指示灯 |
Power, HDD |
|
|
|
控制 |
Power Switch |
|||
|
环境 |
|
Operating |
Non-operating |
|
|
温度 |
0 ~ 40° C (32 ~ 104° F) |
-20 ~ 60° C (-4 ~ 140° F) |
||
|
湿度 |
10 ~ 85 % @ 40° C, non-condensing |
10 ~ 95 % @ 40° C, on-condensing |
||
|
振动（5-500赫兹） |
1G |
2 G |
||
|
Shock |
10 G (with 11 ms duration, half sine wave) |
|||
|
物理特性 |
外形尺寸（宽x高x深） |
232 x 90 x 232 mm |
|
|
|
重量 |
3.24 kg (7.14 lb) |
|||
| 订货型号 | ||
| 电源选件 | ||
| 1757004308-01 | 250W | AC 100 ~ 240 V (full range) |
| 背板选项 | ||
| PCE-3B03A-00A1E | PICMG 1.3 | 1 (PCIe x4), 1 (PCIe x16) |
| 机箱型号 | ||
| IPC-3012-25ZE | With power supply, with ATX switch | |
| CPU板选项 | ||
| PCE-3026G2-00A1E | PICMG 1.3 Half-size SHB | |
| 可选配件 | ||
| 1750006419 | 27.72 CFM, system fan 60 x 60 x 13 mm | |
| 1990005760T00B | Filter cover for ARK-6620 | |
