产品介绍
Dual-Node 350mm Depth 4U Chassis for Half-Sized Slot SBC
规格
| Drive Bay | Front-accessible | Internal | |
| 3.5" | 1 | - | |
| Cooling | Fan | 1 (9 cm / 58 CFM) | |
| Air Filter | Yes | ||
| Front I/O Interface | USB 2.0 | 2 | |
| USB 3.0 | 2 | ||
| Miscellaneous | LED Indicators | Power On/Off, HDD Action, Fan Status, Temperature Status | |
| Front Buttons | System Reset, Alarm Reset, Power Switch | ||
| Real Panel | 2 COM/VGA, 1 PRT Semi-Piercing Openings | ||
| Environment | Operating | Non-Operating | |
| Temperature | 0 ~ 40° C (32 ~ 104° F) | -20 ~ 60° C (-4 ~ 140° F) | |
| Humidity | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing | |
| Vibration (5 ~ 500 Hz) | 1 Grms | 2 Grms | |
| Shock | 10 G(with 11 ms duration, half sine wave) | 30 G(with 11 ms duration, half sine wave) | |
| Physical Characteristics | Dimensions (W x H x D) | 430 x 177 x 350 mm | |
| Weight | 15.0 kg | ||
订货信息
| Part Number | Description | ||
| ACP-4D00BP-00XE | 4U dual node chassis without BP, power supply | ||
| Power Supply Options | |||
| Part Number | Wattage | ||
| PS8-250FATX-XE | 250W | ||
| PS8-350FATX-XE | 350W | ||
| Supported CPU Cards | |||
| Part Number | Description | ||
| PCE-3028G2-00A1E | PICMG 1.3 half-sized SBC w/ 4th Gen. Core i CPU,front USB 3.0 | ||
| PCE-4128G2-00A1E | PICMG 1.3 half-sized SBC w/ Xeon E3-12XX v3 CPU,front USB 3.0 | ||
| * Strongly recommend Advantech CPU cards listed above to minimizing risk of compatibility issue. If the CPU card has no USB 3.0 on-board box header, the front USB 3.0 ports can NOT be activated. | |||
| Supported Backplanes | |||
| Part Number | CPU Card Slot | PCIe Slot | PCI |
| PCE-3B03-00A1E | PICMG 1.3 |
1 PCIe x 16 1 PCIe x 4 |
- |
| PCE-3B06-00A1E | PICMG 1.3 |
1 PCIe x 16 4 PCIe x 1 |
- |
| PCE-3B06-03A1E | PICMG 1.3 |
1 PCIe x 16 1 PCIe x 1 |
3 |
| PCA-6105P5-0B2E | PCI | - | 4 |
| Optional Accessories | |||
| Part Number | Description | ||
| 1960053207N001 | 1.5U CPU cooler for 3 available expansion slots | ||
| IDT-3120E | Drive bay module converting 1 3.5" to 2 hot-swap 2.5" | ||
| 989K008734 | Bracket to fix two 2.5" devices in a 3.5" drive bay | ||
| 9680006905 | Slide rail for ACP-4D00 | ||
| * The 1.5U CPU cooler 1960053207N001 is for LGA 1155/1150 socket CPUs, it is thin enough to leave 3 available expansion slots on the backplane. | |||

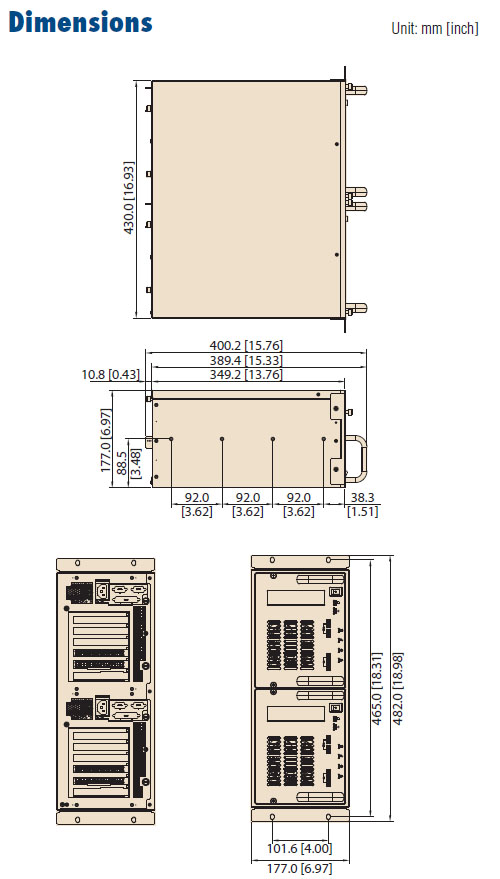

尺寸

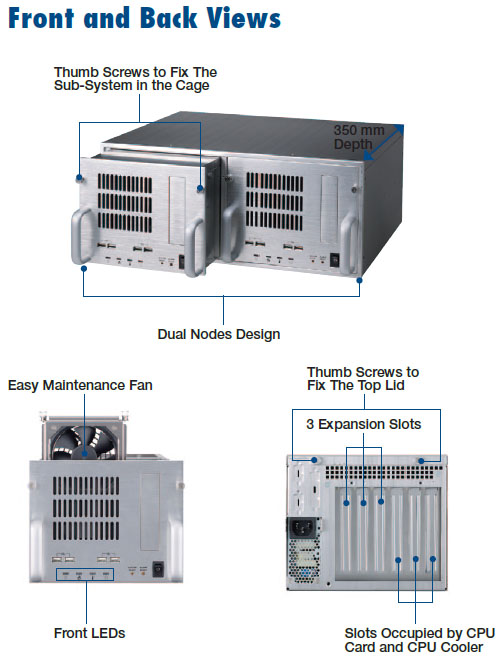

视图
