产品介绍
LGA1155第三代智能英特尔®酷睿™处理器为基础的平台
规格
| Processor System | CPU | Core i7 3xxx/2xxx | Core i5 3xxx/2xxx | Core i3 3xxx /2xxx | |
| Speed | 3.4 GHz | 3.4/3.3 GHz | 3.4 GHz | ||
| L3 Cache | 8 MB | 6 MB | 3 MB | ||
| Socket | LGA1155 | ||||
| Chipset | Q77 | ||||
| BIOS | AMI 64 Mbit SPI | ||||
| Expansion Slot | PCI | 32-bit/33 MHz, 4 slots | |||
| PCIe x 1 (Gen2) | 500MB/s per direction, 1 slot | ||||
| PCIe x 4 (Gen2) | 2.0GB/s per direction, 1 slot | ||||
| PCIe x16 (Gen3) | 16 GB/s per direction, 1 slot | ||||
| Memory | Technology | Dual Channel DDR3 1066/1333/1600 (1600 only supported by Core i7/i5/i3 3xxx series processors) | |||
| Max. Capacity | 32 GB | ||||
| Socket | 4 x 240-pin DIMM | ||||
| Graphics | Controller | Intel HD Graphics 2000/2500/3000/4000 (Depends on processor) | |||
| VRAM | 1 GB maximum shared memory with 2 GB and above system memory installed | ||||
| Ethernet | Interface | 10/100/1000 Mbps | |||
| Controller | GbE LAN1: Intel 82579LM, GbE LAN2: Intel 82583V | ||||
| Connector | RJ-45 x 2 | ||||
| SATA | Max Data Transfer Rate | 600 MB/s | |||
| Channel | 2 | ||||
| Max Data Transfer Rate | 300 MB/s | ||||
| Channel | 4 | ||||
| Rear I/O | VGA | 1 | |||
| DVI | 1 | ||||
| Ethernet | 2 | ||||
| USB | 4 (Two USB 3.0) | ||||
| Audio | 2 (Mic-in, Line-out) | ||||
| Serial | 2 (RS-232) | ||||
| PS/2 | 2 (1 x keyboard and 1 x mouse) | ||||
| Internal Connectors | USB | 10 (Two USB 3.0) | |||
| Serial | 4 (3 x RS-232, 1 x RS-232/422/485 with auto-flow control) | ||||
| IDE | - | ||||
| SATA | 6 (SATA II x4 and SATA III x2) | ||||
| Parallel | 1 | ||||
| IrDA | 1 | ||||
| DIO | - | ||||
| Watchdog Timer | Output | System reset | |||
| Interval | Programmable 1 ~ 255 sec | ||||
| Power Requirement | Power On | Intel Core i5 3550 3.0 GHz; DDR3 8G x 4 | |||
| 3.3 V | 5 V | 12 V | 5 Vsb | ||
| 0.77 A | 2.23 A | 3.56 A | 0.46 A | ||
| Environment | Operating | Non-Operating | |||
| Temperature | 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution | -40 ~ 85° C (-40 ~ 185° F) | |||
| Physical Characteristics | Dimensions | 304.8 x 244 mm (12" x 9.6") | |||
订货信息
| 料号 | 芯片组 | 内存 | 显示 | COM | LAN | SATA III | RAID |
| AIMB-782QG2-00A1E | Q77 | 不支持ECC | VGA + DVI | 6 | 2 | 2 | 有 |
可选配件
| 料号 | 说明 |
| 1700002204 | Dual port USB 2.0 cable (27 cm) with bracket |
| 1700020277-01 | Dual port USB 3.0 Cable with bracket |
| 1960047669N001 | LGA1155/1156 CPU cooler for 4U and wallmount chassis |
| 1960047831N001 | LGA1155/1156 CPU cooler for 2U and wallmount chassis |
| 1960049408N001 | LGA1155/1156 CPU cooler for 1U and wallmount chassis |
| 1700008809 | Printer port cable kit |
| 1701092300 | COM port cable kit |
| 1960055954T000 | I/O port bracket for 1U chassis |
| Note: Purchasing AIMB-782's proprietary CPU cooler from Advantech is a must. Other brands' CPU coolers are NOT compatible with AIMB-782.1960049408N001 supports up to 73W processor. | |
| AIMB-R430P-03A2E | 2U riser card with 3 PCI expansion |
| AIMB-R43PF-21A1E | 2U riser card with 1 PCIe x16 & 2 PCI expansion |

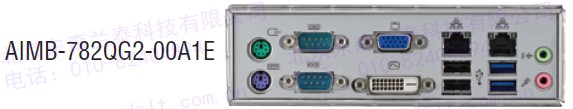

后挡板
配料包
| 料号 | 说明 | 数量 |
| 1700003194 | SATA HDD cable | x 2 |
| 1703150102 | SATA power cable | x 2 |
| 1960050472T000 | I/O port bracket | x 1 |
| 2002078210 | Startup manual | x 1 |
| 2062078200 | Driver CD | x 1 |
