产品介绍
6th Generation Intel® Core™ processor-based platform

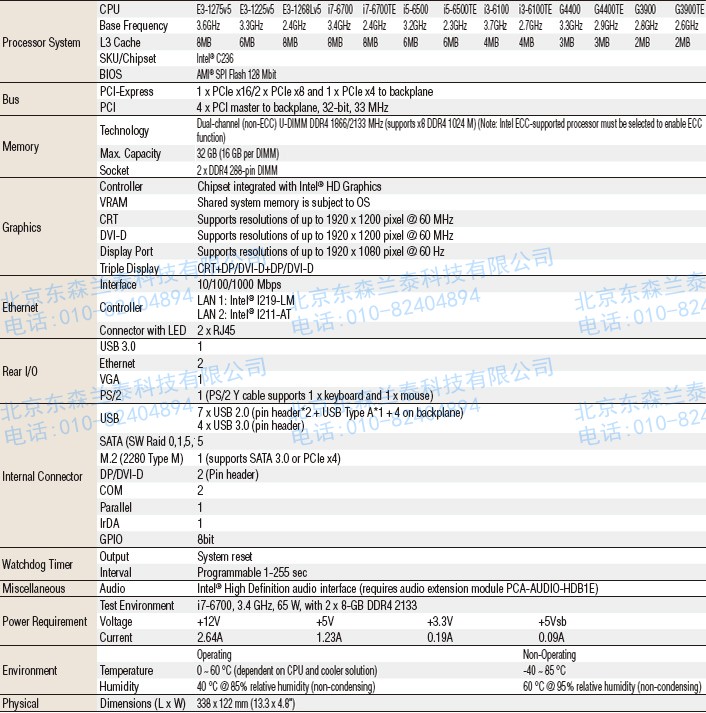

规格
订货信息
| P/N | PCH | Backplane | LAN |
| PCE-7129G2-00A1E | C236 |
PCE-5BXX PCE-7BXX |
2 |
| Note: DP/DVI-D cable is optional | |||
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com
配料包
| Part Number | Description |
| 1700003194 | Serial ATA HDD data cable |
| 1700022749-11 | Serial ATA HDD power cable |
| 1701260305 | COM + printer ports cable kit |
| 1700060202 | Keyboard and mouse Y-cable |
| 1700002204 | 2-port USB cable kit |
| 9689000068 | Jumper package |
| 2190000902 | Warranty card |
| 2001512910 | Startup manual |
| 2061512900 | Utility CD |
可选配件
| 产品料号 | 描述 |
| 1960052651N021 | 2U CPU cooler (PWM fan) |
| 1960049408N001 | CPU cooler for 1U chassis |
| PCA-AUDIO-HDB1E | Audio module |
| PCA-TPM-00A1E | TPM module |
| PCA-COM232-00A1E | 4-port RS-232 LPC module |
| PCA-COM485-00A1E | 4-port RS-422/485 LPC module |
| 1700020277-01 | 2-port USB 3.0 cable w/ BKT (30 cm) |
| 1700021831-01 | DP to DVI-D cable w/ BKT |
| PCE-DP10-00A1E | DP to DP cable w/ BKT |

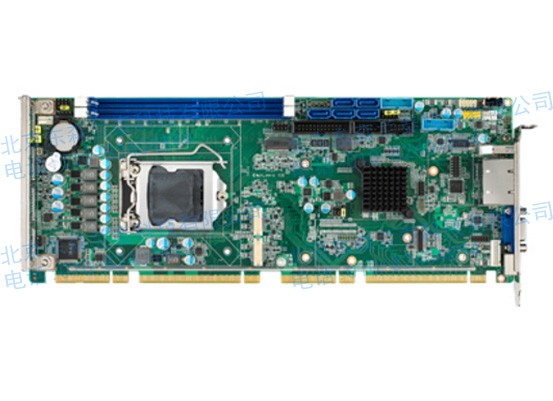

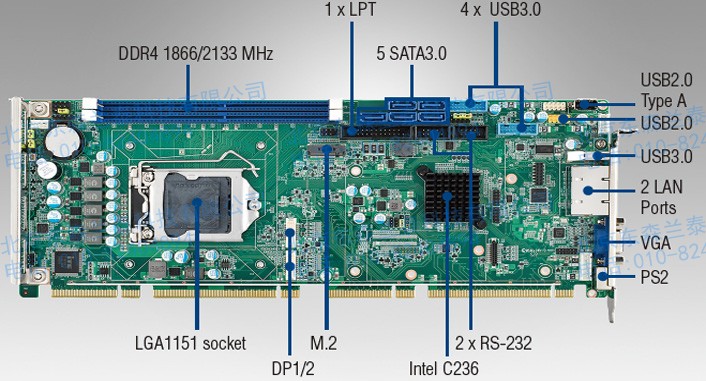

产品图片及框图
